2021 Chevrolet Camaro SS Silver Performance Drilled/Slotted Rotors with Ceramic Series

2021 Chevrolet Camaro SS Silver Performance Drilled/Slotted Rotors with Ceramic Series

Driving Style: Daily

Recommended Vehicles: Passenger Vehicles and Light Trucks

Per Car Quantity: 1

Rotor Pattern: Drilled & Slotted

Position: Front and Rear

Part Number: WGWH2-47035

Fitments:

- Aluminum Hat Disc; Chevrolet Performance 6 Piston Front Calipers
- Chevrolet Performance 6 Piston Front Calipers; Full Cast Front Disc

Description	Brake Rotor (Left)	Brake Rotor (Right)	Brake Rotor
Bolt Circle Diameter	120 mm	120 mm
Bolt Hole Diameter	16 mm	16 mm
Bolt Hole Quantity	5 EA	5 EA
Center Hole Diameter	67.5 mm	67.5 mm
Directional or Non-Directional Brake Surface	Directional	Directional	Directional
Disc Finish	Plain	Plain	Plain
Discard Thickness	24 mm	24 mm	32 mm
Hat Finish	Zinc Silver	Zinc Silver	Zinc Silver
Height	48.2 mm	48.2 mm
Nominal Thickness	26 mm	26 mm
Outside Diameter	339 mm	339 mm	370 mm
Overall Height	48.2 mm	48.2 mm
Rust Resistant Coating	Yes	Yes	Yes
Solid Or Vented Type Rotor	Vented	Vented
Stud/Lug Hole Circle Diameter	120 mm	120 mm
Stud/Lug Hole Diameter	16 mm	16 mm
Stud/Lug Hole Quantity	5	5
Surface Type	Slotted X Drilled	Slotted X Drilled	Slotted X Drilled

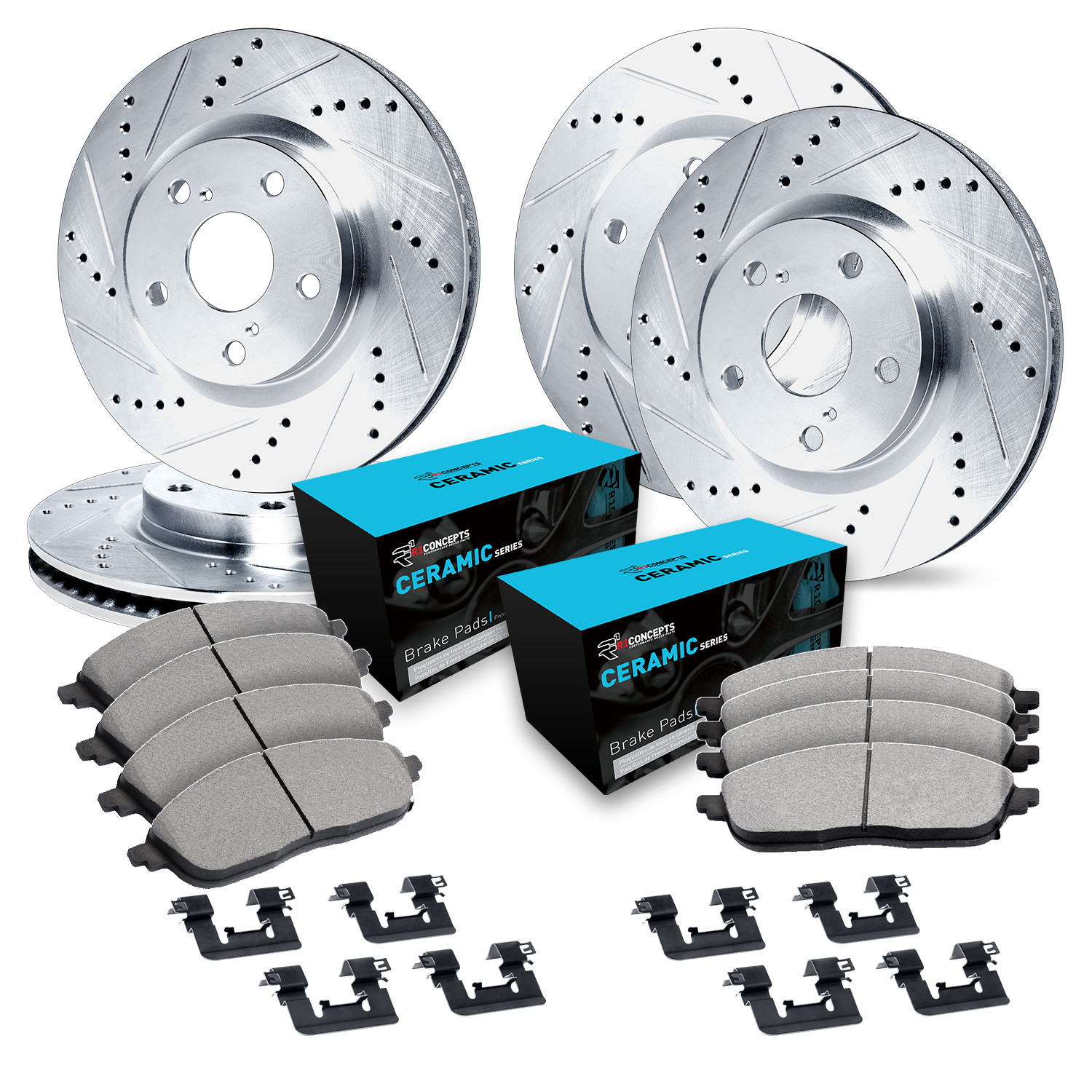

All-in-One Complete Brake Kit Replacement: R1 Concepts eLine Series Front & Rear Brake Kit comes with (4) high performance brake rotors (8) performance brake pads and hardware
High Performance Brake Rotors: Made of G3000 grade cast iron with zinc finish for ultimate rust protection. Built with O.E.M specifications in mind, no modification required.
Low Dust & Noise: Brake pads come with shims to eliminate noise. Low dust, asbestos free special Ceramic formulation provides excellent fade resistance. Top choice for front and rear brake pads replacement.
Reliable Street Performance: Diamond slotted design increase brake pad bite, extends brake pad life and serves as a rotor wear indicator giving you a heads up before your next replacement.
Ultimate Stopping Power: Precision-drilled holes and countersunk design prevents cracking and build up, enhances ventilation and dissipates heat. Designed for smoother and quieter stopping, built for longer lasting, consistent braking perfo

WHERE TO BUY

All-In-One Brake Kit

R1 eLINE Series Brake Rotors:
High-quality stopping power at a low and affordable cost. State-of-the-art technology, you don't need to choose between performance and budget.
R1 CERAMIC Series Brake Pads: Made of premium ceramic materials giving you low dust and low noise.
R1 Hardware: Reduces noise/vibration and prevents premature pad wear.

All-In-One Brake Kit

Everything you need to improve your brakes.

Cross-Drilled and Diamond Slotted Brake Rotors. Provides the maximum benefits in stopping power, durability, and performance.

Silver Zinc Plated Coating. Designed to protect from corrosion which leads to better appearance, longer life, and overall improved maintenance and replacement costs.

Premium Ceramic Formulation Brake Pads. Low Brake Dust and Low Noise.

improve your safety by imporving your braking

IMPROVE YOUR
SAFETY BY
IMPROVING
YOUR BRAKING

Reliable and durable, eLine Series Brake Kit will get you to your destination safely no matter where you're going.

UNDENIABLE BRAKING

PERFORMANCE

R1 eLINE Series Brake Rotors provide high-quality stopping power at a low affordable cost. With our state-of-the-art technology, you don't need to choose between performance and budget: it's all in a single package. Your R1 eLINE Series Brake Rotors will last longer, cost you less, and ensure your vehicle's safety for thousands of miles to come.

eLINE Silver DrilledSlotted Rotors Ceramic Pads

BENEFITS OF CERAMIC FORMULATION

Made of ceramic materials that are pressure-adhered within the brake-pad compound, ceramic brake pads are quieter and smoother. For vehicles that stop on a dime - without any unpleasant sounds and low on brake dust - CERAMIC brake pads offer the best.

Approximately 15,000 reported car accidents occur each day

Stopping faster means stopping safer. Whether you're taking your children to a dance recital or hitting the town with your friends, you need to be able to remain in complete control of your vehicle. Reliable and durable, eLINE Series Brake Rotors will get you to your destination safely no matter where you're going.

r1 website 2022 eline product kits detail page diagram silver drilledslotted

Break in Procedure

Please be advised that when you first receive the rotors, they are completely covered with the silver zinc coating. During the initial embedding process, the silver zinc coating on the braking surface, the area where the pads come in contact with the rotors will wear off, leaving only the hub and inner vane structure coated.

R1 Concepts Brake Rotor/Pads Break-In Procedure. Click Here
