Per Car Quantity: 1
Includes: 4 Brake Rotors
Rotor Pattern: Drilled & Slotted
Position: Front and Rear
Part Number: WBPN2-03009
Fitments: Rear Disc, United States
| Description | Brake Rotor (Left) | Brake Rotor (Right) |
|---|---|---|
| Bolt Circle Diameter | 100 mm | 100 mm |
| Bolt Hole Diameter | 12.5 mm | 12.5 mm |
| Bolt Hole Quantity | 4 EA | 4 EA |
| Center Hole Diameter | 62.5 mm | 62.5 mm |
| Directional or Non-Directional Brake Surface | Directional | Directional |
| Disc Finish | Geoperformance Coated | Geoperformance Coated |
| Discard Thickness | 8.4 mm | 8.4 mm |
| Hat Finish | Geoperformance Coated | Geoperformance Coated |
| Height | 44.2 mm | 44.2 mm |
| Nominal Thickness | 10 mm | 10 mm |
| Outside Diameter | 262 mm | 262 mm |
| Overall Height | 44.2 mm | 44.2 mm |
| Rust Resistant Coating | Yes | Yes |
| Solid Or Vented Type Rotor | Solid | Solid |
| Stud/Lug Hole Circle Diameter | 100 mm | 100 mm |
| Stud/Lug Hole Diameter | 12.5 mm | 12.5 mm |
| Stud/Lug Hole Quantity | 4 | 4 |
| Surface Type | Slotted X Drilled | Slotted X Drilled |
WHERE TO BUY

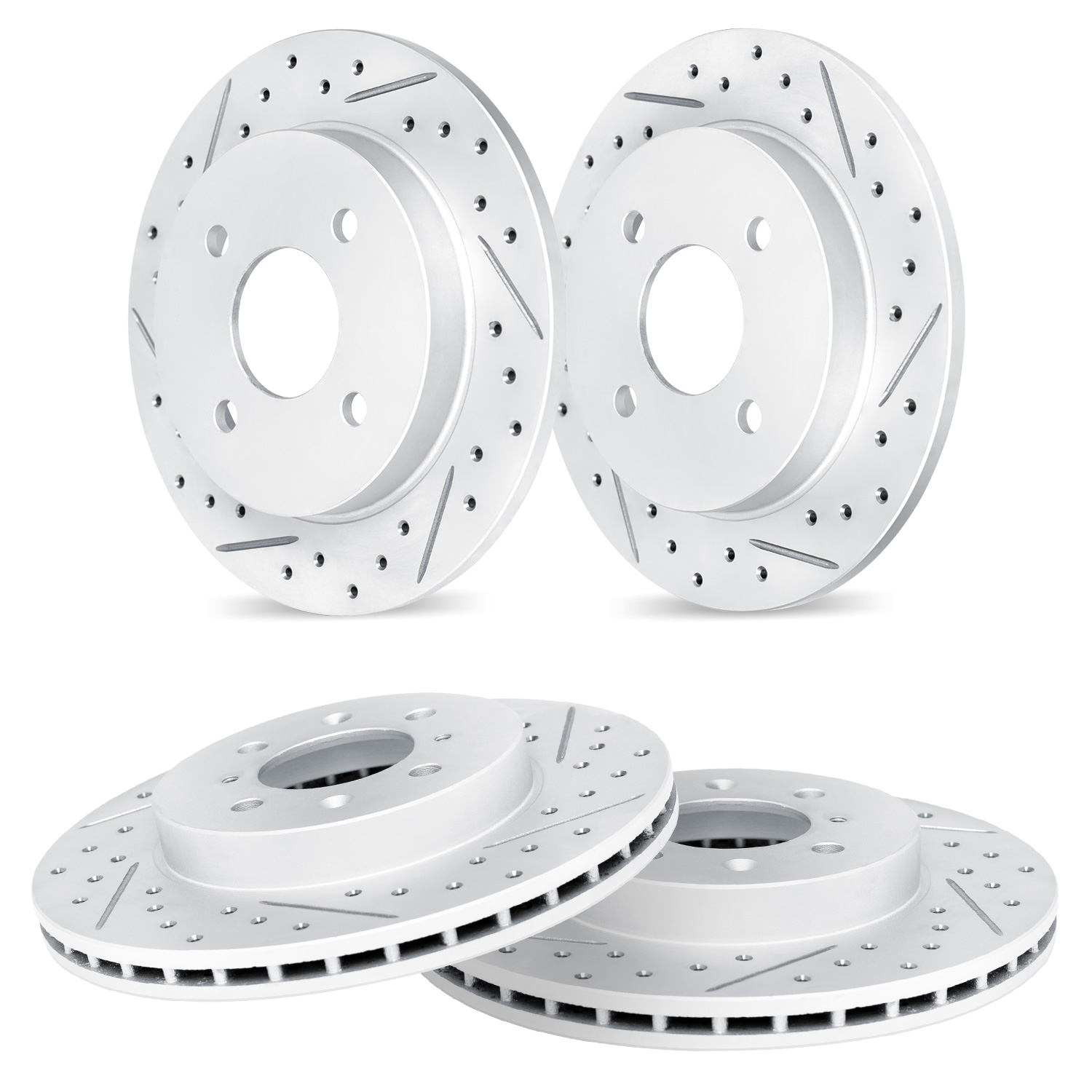

Cross-Drilled and Diamond Slotted Brake Rotors Set. It provides the maximum benefits in stopping power, durability, and performance.
Special Coating. Designed to protect from corrosion which leads to better appearance, longer life, and overall improved maintenance and replacement costs.
Original Equipment Specifications. No modifications are required for a quick and easy installation.
Reliable and durable, R1 GEO-Carbon Series Brake Rotors Set will get you to your destination safely no matter where you're going.
R1 GEO-Carbon Series Rotors provide high-quality stopping power with superior corrosion protection. With our state-of-the-art technology, these brake rotors are ready for anything, any where, and anytime.
Stopping faster means stopping safer. Whether you’re taking your children to a dance recital or hitting the town with your friends, you need to be able to remain in complete control of your vehicle. Reliable and durable, eLINE Series Brake Rotors Set will get you to your destination safely no matter where you’re going.
Please be advised that when you first receive the rotors, they are completely covered with the silver coating. During the initial embedding process, the silver coating on the braking surface, the area where the pads come in contact with the rotors will wear off, leaving only the hub and inner vane structure coated.
R1 Concepts Brake Rotor/Pads Break-In Procedure. Click Here
